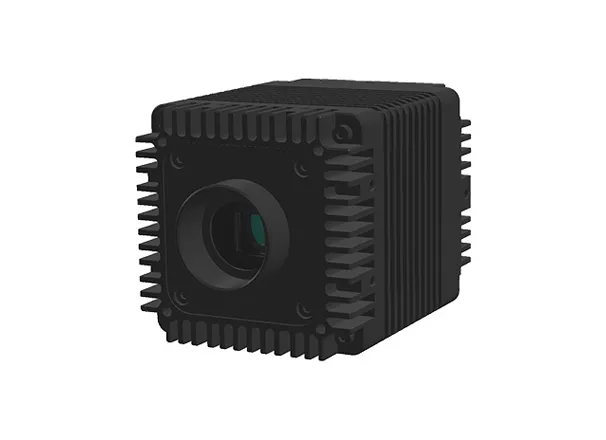

GH-SW130T-GigE, equipped with Sony sensor IMX990, can capture wide band image information ranging from 400nm to 1700nm. This camera can replace the traditional Visible camera & SWIR camera dual camera detection scheme. The wide spectral band is suitable for multispectral applications, while the high frame rate of the camera is perfect for semiconductor inspection applications.
Wide Spectral Response 400-1700nm.
TEC-1stage Cooler.
Defect Correction、DSNU、FFC、PRNU.
Support third-party software such as HALCON，VisionPro，LabVIEW .
Support GigE interface. Compliant with standards GigE Vision® and GenICam®.
| Type | GH-SW130T-GigE |
| Sensor | Sony IMX990 |
| Resolution | 1280 x 1024 |
| Pixel Pitch | 5μm |
| Effective area | 6.4mm x 5.12mm （Diagonal 8.2mm） |
| Frame rate | 89fps（Under acquisition burst high speed mode, acquisition frame rate up to 134fps at sensor bit depth BPP8） |
| Exposure | Utra short：3μs ~ 100μs，Actual Steps：1μs； Standard：13μs ~ 1s，Actual Steps：1row period |
| SNR | 50.4dB |
| ADC | 8bit / 10bit / 12bit |
| Binning | 1 × 1，1 × 2，2 × 1，2 × 2 |
| Data Interface | GigE PoE |
| Power Supply | 12VDC-10% ~ 24VDC+10% supplied via the camera's Hirose connector or PoE (Power over Ethernet, IEEE802.3af compliant) |
| Power Consumption | 13W @Max. cooling |
| Dimensions | 58mm×58mm×75.5mm（no lens） |
| Spectral | 0.4μm ~ 1.7μm |
| Pixel Bit Depth | 8bit / 10bit / 12bit |
| Gain | 0dB ~ 24dB；Default 0dB，Steps0.1dB |
| Shutter | Global shutter |
| Synchronization | Hardware trigger, software trigger |
| I/O interface | 1 input and 1 output with opto-isolated, 1 programmable GPIO |
| Pixel Formats | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Cooling | TEC，15°C±0.5°C below ambient temp.@room temp. |
| Software | 3rd-party software such as HALCON, VisionPro and LabVIEW |
| Lens Mount | C-Mount |
| Operating Temp. | 0 ℃~ + 45 ℃ |
| Storage Temp. | -20 ℃ ~ + 70 ℃ |
| OS | 32bit / 64bit Windows，Linux，Mac OS |
| Conformity | CE，RoHS，GigE Vision®，GenICam® |
