0.2-0.4μm Spectral Response 0.2-0.4μm
8M Resolution
GigE Interface

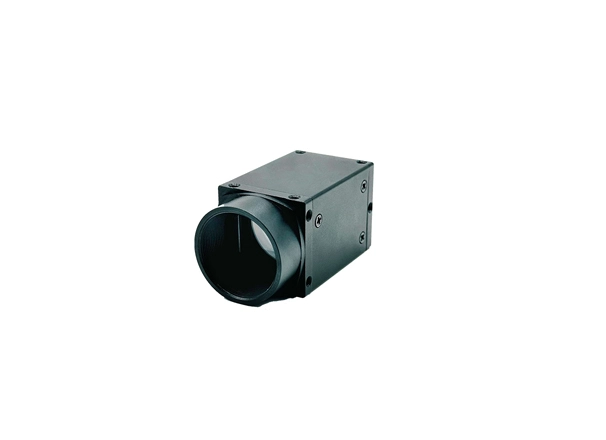

Type | GH-UV800-GigE |
Sensor | Sony UV CMOS IMX 487- |
Format | 2856 x 2848 |
Spectral Range | 0.2μm ~ 0.4μm |
Pixel Pitch | 2.74μm |
Image size | 2/3“ |
Max. frame rate | 14Hz |
Gain | 30 Times |
Shutter time | 0.023ms ~ 3000ms |
Pixel depth | 8/12bit |
Pixel format | Mono 8/10 Bayer 8/10 |
Binning | Support 1×1，2×2 |
Frame buffer | 128M Bytes |
User parameter area | 4K Bytes |
Collection method | Continuous/soft trigger/hard trigger |
Data interface | GigE @ 1Gbps |
Transmission distance | 100m |
Digital I/O | 6 pin connectors for power supply, I/O: 1 optocoupler isolated input, 1 optocoupler isolated output |
Power supply | 12 VDC |
Power consumption | ＜3.0 W @ 12 VDC |
Dimensions | 29mm x 29mm x 43mm（No lens） |
Lens mount | C-mount/CS-mount |
IP Rating | IP30 |
Weight | 66g |
Temperature | Operating Temp 0℃~ 50℃/Storage Temp -30℃~ 70℃ |
Humidity | 20% ~ 80% RH No Condensation |
Driver | DirectShow/Twain/Halcon/OCX supported |
Software | Compatible with Halcon/OpenCV/LabView/Matlab |
Programmable language | C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python |
Operating system | Windows, Linux, Android, MacOS |
Protocol | GigE Vision |
