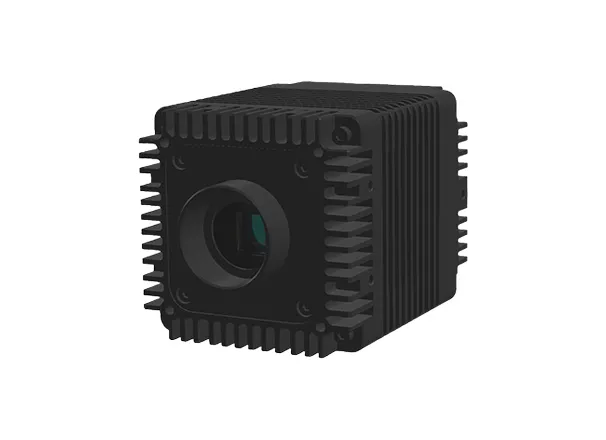

SWIR camera GH-SW500T-10G is equipped with Sony IMX992 high-sensitivity sensor, it captures wide band image information of visible light and shortwave infrared in the range of 400nm~1700nm. This camera can replace the traditional combination of Visible camera & SWIR camera, and its broadband characteristics are suitable for multispectral applications. At the same time, the camera has high frame rate, which is very suitable for semiconductor detection applications.
This camera transmits image data via a 10GigE data interface, achieving a maximum transmission rate of 10Gbit/s. The cable lock on the camera ensures stable operation in harsh environments. It is a highly reliable, cost-effective industrial digital camera.
5 mega-pixel . Wide Spectral Response 400-1700nm.
TEC-1stage Cooler.
Defect Correction、DSNU、FFC、PRNU.
Support third-party software such as HALCON，VisionPro，LabVIEW .
10GigE interface. Compliant with standards GigE Vision® and GenICam®.
| Type | GH-SW500T-10G |
| Sensor | Sony IMX992 |
| Resolution | 2592 x 2056 |
| Pixel Pitch | 3.45μm |
| Effective area | 8.96mm x 7.09mm （Diagonal 11.4mm） |
| Frame rate | 134fps |
| Exposure | Utra short：8μs ~ 100μs，Actual Steps：1μs； Standard：21μs ~ 1s，Actual Steps：2row period |
| SNR | 46.41dB |
| ADC | 10bit / 12bit |
| Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
| Data Interface | 10GigE |
| Power Supply | 24V DC ±10% |
| Power Consumption | 10.5W@24VDC (Ambient@30° C, and TEC cooling@15° C) |
| Dimensions | 62mm×62mm×80.5mm（no lens） |
| Spectral | 0.4μm ~ 1.7μm |
| Pixel Bit Depth | 8bit / 10bit / 12bit |
| Gain | 0dB ~ 24dB；Default 0dB，Steps0.1dB |
| Shutter | Global shutter |
| Synchronization | Hardware trigger, software trigger |
| I/O interface | 1 input and 1 output with opto-isolated, 1 programmable GPIO |
| Pixel Formats | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Cooling | TEC，15°C±0.5°C below ambient temp.@room temp. |
| Software | 3rd-party software such as HALCON, VisionPro and LabVIEW |
| Lens Mount | C-Mount |
| Operating Temp. | 0 ℃~ + 45 ℃ |
| Storage Temp. | -20 ℃ ~ + 70 ℃ |
| OS | 32bit / 64bit Windows，Linux，Mac OS |
| Conformity | CE，RoHS，GigE Vision®，GenICam® |
