Short-Wave Infrared (SWIR) light, spanning wavelengths from 0.9 to 1.7 μm, occupies a unique spectral region between visible and thermal infrared. Unlike thermal imaging that detects heat emission, SWIR imaging cameras capture reflected light — producing images with detail and contrast comparable to visible light, yet with capabilities that extend far beyond the human eye. GHOPTO, as China's first commercial InGaAs imaging manufacturer, delivers cutting-edge short wave infrared imaging camera solutions for industrial, scientific, and defense applications.
A defining advantage of SWIR imaging cameras is their ability to image through glass. Unlike thermal cameras that require specialized germanium or silicon windows, SWIR wavelengths transmit through standard glass optics with high efficiency. This enables protective enclosures with sealed glass windows — critical for semiconductor cleanrooms, pharmaceutical manufacturing, and harsh industrial environments where dust, moisture, or chemicals would damage exposed sensors.
Short wave infrared imaging cameras are significantly less affected by atmospheric scattering than visible-light systems. SWIR wavelengths penetrate fog, haze, and smoke with minimal attenuation, delivering clear imagery when conventional cameras fail. This makes SWIR indispensable for maritime surveillance, coastal defense, and outdoor security applications where environmental conditions are unpredictable.
The atmospheric glow phenomenon — natural night sky illumination from hydroxyl ion emissions — peaks in the 1.0–1.8 μm band. This gives SWIR imaging cameras inherent night vision advantages without requiring active illumination, enabling passive surveillance that remains completely covert.
SWIR imaging produces high-contrast grayscale images where target details are clearly expressed. Unlike thermal imaging that loses detail when target and background temperatures converge, short wave infrared imaging cameras rely on reflected light, preserving edge definition and surface texture. This complementary capability makes SWIR the ideal partner to thermal imaging — thermal detects the presence of a warm target; SWIR identifies what the target is (ship, vehicle, person).

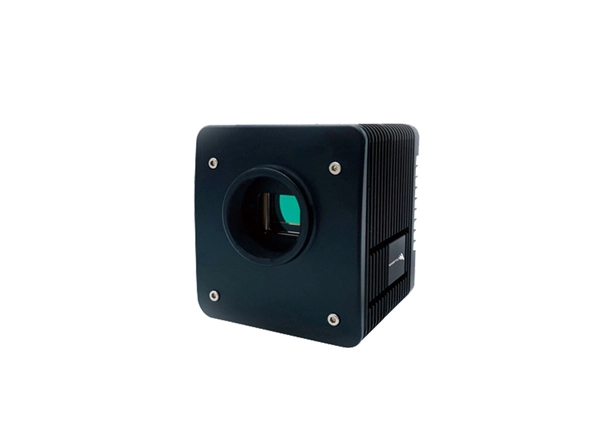

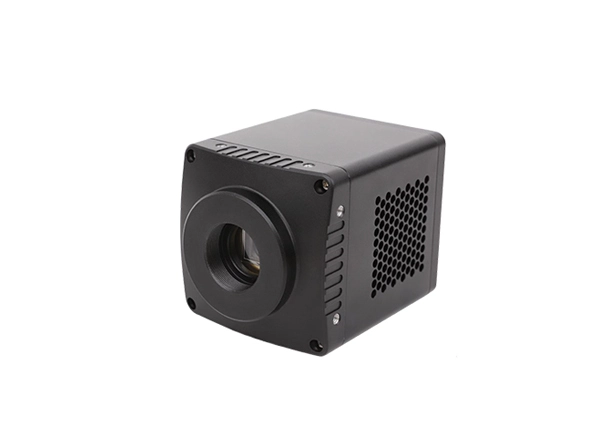

GHOPTO SWIR cameras leverage proprietary InGaAs detector technology developed in-house:
Multiple resolutions: 320×256, 640×512, and 1280×1024 pixel formats with 15 μm pitch
Extended spectral response: 900–1700 nm standard, expandable to 400–1700 nm for visible-SWIR fusion
High dynamic range: >70 dB for simultaneous imaging of bright and dark scene regions
Low noise performance: TEC cooling reduces dark current; minimum integration time of 5 μs enables high-speed capture
Flexible interfaces: USB 2.0/3.0, GigE, and CameraLink options for seamless system integration
The two primary markets for SWIR imaging cameras are semiconductor inspection (40% market share) and food inspection (30%). In semiconductor manufacturing, SWIR cameras detect silicon wafer defects, cracks, and doping variations by exploiting silicon's transparency beyond 1200 nm. In food and agriculture, SWIR identifies bruising, moisture content, and foreign material contamination invisible to RGB cameras.
Additional applications include:
Machine vision: Laser beam profiling, alignment verification, and process monitoring
Photovoltaics: Solar cell defect inspection and electroluminescence imaging
Security & surveillance: Facial recognition through tinted glass, night vision, and threat detection
Scientific research: Spectroscopy, hyperspectral imaging, and remote sensing
The short wave infrared imaging camera represents a transformative technology that bridges the gap between visible and thermal imaging. With glass-transmitting capability, all-weather performance, and superior target recognition, SWIR cameras unlock applications impossible for conventional sensors. GHOPTO provides comprehensive SWIR imaging camera solutions — from 320×256 entry-level models to 1280×1024 high-definition systems — backed by in-house InGaAs detector fabrication, custom engineering services, and global technical support.
